Rincian Produk
Model: PMD-15 PVDF
Merek: Taha, India
Kondisi: Baru
Berat bersih: 4 Kg.
SKU: CPTPPMD15PVX
Jual PVDF Magnetic Drive Pump PMD-15 Pompa Magnetik
Aplikasi pompa sentrifugal PMD : Kimia & asam pekat, limbah, pewarna, pigment, filter press, pelapisan, air RO, air DM, air laut dan lain-lain.
PVDF : Polyvinylidene Fluoride

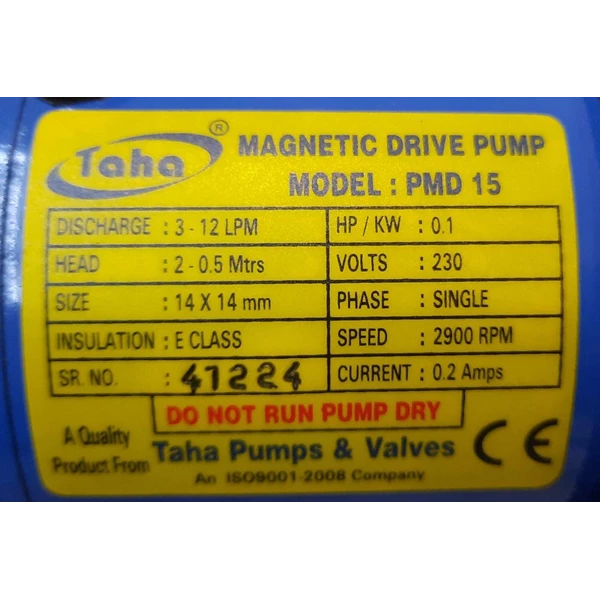

Spesifikasi pompa magnetik PVDF PMD-15 :
- Ukuran 14 mm x 14 mm
- Inlet & Outlet Nepel selang
- Kapasitas / Debit 12 Lpm (0,72 m3/jam) (Maks.)
- Head (Vertikal) Hingga 2 Mtr
- Angkat hisap / Suction lift Hingga 0,5 Mtr (Dengan Foot valve)
- Berat jenis (Massa jenis) fluida Hingga 1,1 (1100 Kg/m3)
- Suhu fluida Hingga 100° Celsius
- pH fluida 1~8
- Kecepatan pompa 2900 Rpm
- Spesifikasi elektro motor 0,10 Hp (0,075 kW) 2900 Rpm 1 Fase 230V 50 Hz
- Tipe impeller Semi-open
NOTE : Berat jenis fluida di atas 1,0 ? Hubungi kami untuk konsultasi produk.
Bahan konstruksi pompa magnetik PVDF PMD-15 :
- Suction casing & cover Polyvinylidene Fluoride
- Impeller Polyvinylidene Fluoride
- Shaft High alumina ceramic
- Bush Glass filled teflon
- Thrust washer High Alumina Ceramic
- O-Ring Viton
- Magnets Permanent high power rare earth magnets
- Mounting bracket & motor body Aluminium / Cast iron
PVDF Magnetic Drive Pump PMD-15 dapat digunakan untuk : Sulfuric acid, Hydrochloric acid, Phosphoric acid, Nitric acid, Acetic acid, Copper, zinc, smelter, steel & re-rolling plants, Caustic soda plants, Rayon & staple fiber plant (Bleach liquor), Paper & pulp industries, Pharmaceuticals industries, Distilleries, Fertilizer plants, Thermal & chemical plants, Effluent treatment, Filter press for dyes & chemicals, Water treatment plants, Transferring of Concentrated HCL, Electroplating chemicals, Scrubbing of corrosive gases, Boiler descaling, Pickling in steel rolling mills, Dyes & intermediate industries, Cement & refractory plants.
- Produk dan Spare part ready stock di perusahaan kami.
- Garansi Satu (1) tahun untuk kualitas dan performa produk.
- Garansi termasuk Free repair dan servis di workshop kami.
- Garansi tidak termasuk penggantian spare part.
- Harga sudah termasuk PPN.
- Harga sudah termasuk packing.
- Hubungi kami di (021) 62308030 / 62308035 WA 085719196960 / 081388920119
